BOLLFILTER Simplex Type 1.65.1 / 1.53.1

Filter for high pressure and coarse filtration
Flange Connection
ASME or DIN
2" - 40" or DN 50 - DN 1000
Connections inline
Type 1.65.2 / 1.53.2
Filter element
Candle insert
Basket element

Grade of filtration
10 µm - 5 mm
Pressure stage
PN 16 - PN 40
Higher pressure stages available on request
Filter housing
Welded
Type 1.53.1: Stainless steel
Type 1.65.1: Steel
Optional equipment
Optional equipment type 1.53.1
Pickling and passivation
Differential pressure indicator
Version: optical or optical/electrical
Lid lifting and swivelling device

Optional equipment type 1.65.1
Epoxy coating and rubber coating for basket strainer
Differential pressure indicator
Version: optical or optical/electrical
Lid lifting and swivelling device

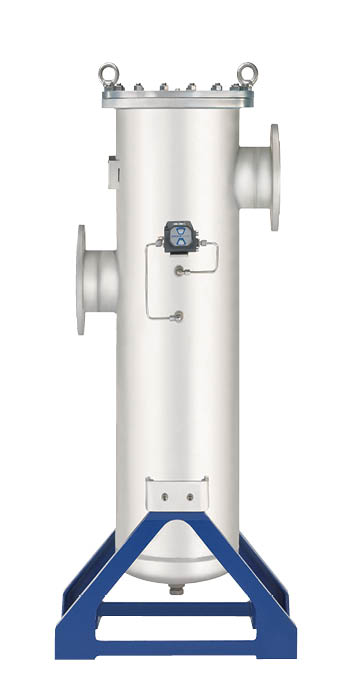

BOLLFILTER Simplex Type 1.65.1 / 1.53.1

The simplex filters BOLLFILTER Simplex Type 1.65.1 / 1.53.1 convince with their compact design and minimum number of parts, as well
as the simple cleaning.
